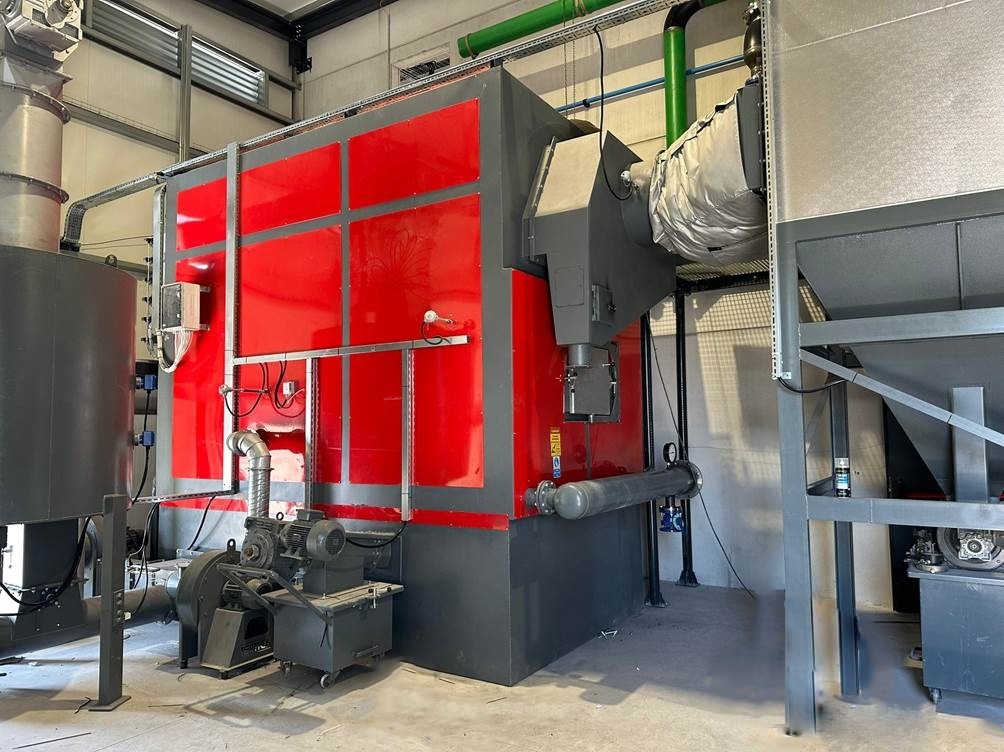

Isımek brand Superheated biomass boilers are in the capacity range of 500,000 kcal/h (580 KW) and 20,000,000 kcal/h (23,256 KW). We design and manufacture industrial-type fire-tube super-heated water boilers & water tube superheated water boilers with over 100 °C operating temperature.
We manufacture biomass-fired industrial type Super Water Boilers and equipment by making use of solar energy, which is a 100% renewable energy source, with a GES (Solar Power Plant) with a capacity of 260 kW installed on the roof of the Isımek factory. Besides this, ISIMEK submits surplus energy for the use of our country
P235 GH and P355 GH quality sheet metal and P235 GH quality pipe are used in boiler manufacturing.
There are equipment and devices such as a moving grate, pre-furnace, stoker, multi-cyclone filter, recuperator, chimney fan, stack/chimney, bag filter, electrical control panel, PLC remote automation, and SCADA system.
Moving grate, Front furnace, Hopper, Multi-cyclone filter, Recuperator, ID fan, Stack, Jet pulse bag filter, Electric control panel, PLC remote automation system, Ground-type concrete or steel moving floor sawdust and woodchips silo, Chain elevator, dust collection systems, modular sawdust silo are within Superhetae water boiler system.

It is environmentally friendly with its low emission and carbon values.
It contributes to sustainable production and life.
Systems supported by automation can be controlled via PLC screen according to customer requirements.
Isımek designs and manufactures Biomass fired boilers in accordance with Turkish and European norms in its own facilities.
After the production and shipment of hot water boilers, we successfully complete the installation and patrolling works at many points in the country and abroad, and we gain the satisfaction and trust of our customers.
Hot water boilers are used in timber, woodworking, greenhouse, heating, and many industrial processes.

TECHNICAL SPECIFICATIONS

Easy to operate and enters the regime quickly.
Maximum operating temperature of 180 °C.
Superheated water boilers are designed and manufactured according to 4 Bar and above operating pressure.
It is manufactured up to a maximum capacity of 20.000.000 kcal/hr and above.
The efficiency is up to 90%.
Eco-friendly and provides the emission values determined by the Ministry.
Manually or fully automatic control.
A PLC control system is available as an option.
Thanks to the automatic pipe cleaning system, energy and time are saved.
Special pumps, valves, and safety valves are carefully selected.
Central district heating, regional heating, wooden industry, forestry, and many sectors
Solar energy, which is a renewable energy source, is used in the whole production process.
