High-Performance Trickle Fill Installations

High-performance trickle fill installations stand out for their exceptional mechanical strength. This strength is due to two critical factors: advanced connection technology and a meticulously designed fill structure.

The circular fill can be produced in various strength classes up to 40 kg/m³, allowing optimum customization according to specific customer demands. With an emphasis on environmental compatibility, we use solvent-free materials and ensure simple and reliable processing with our own developed welding technology. We also comply with strict fire safety standards.

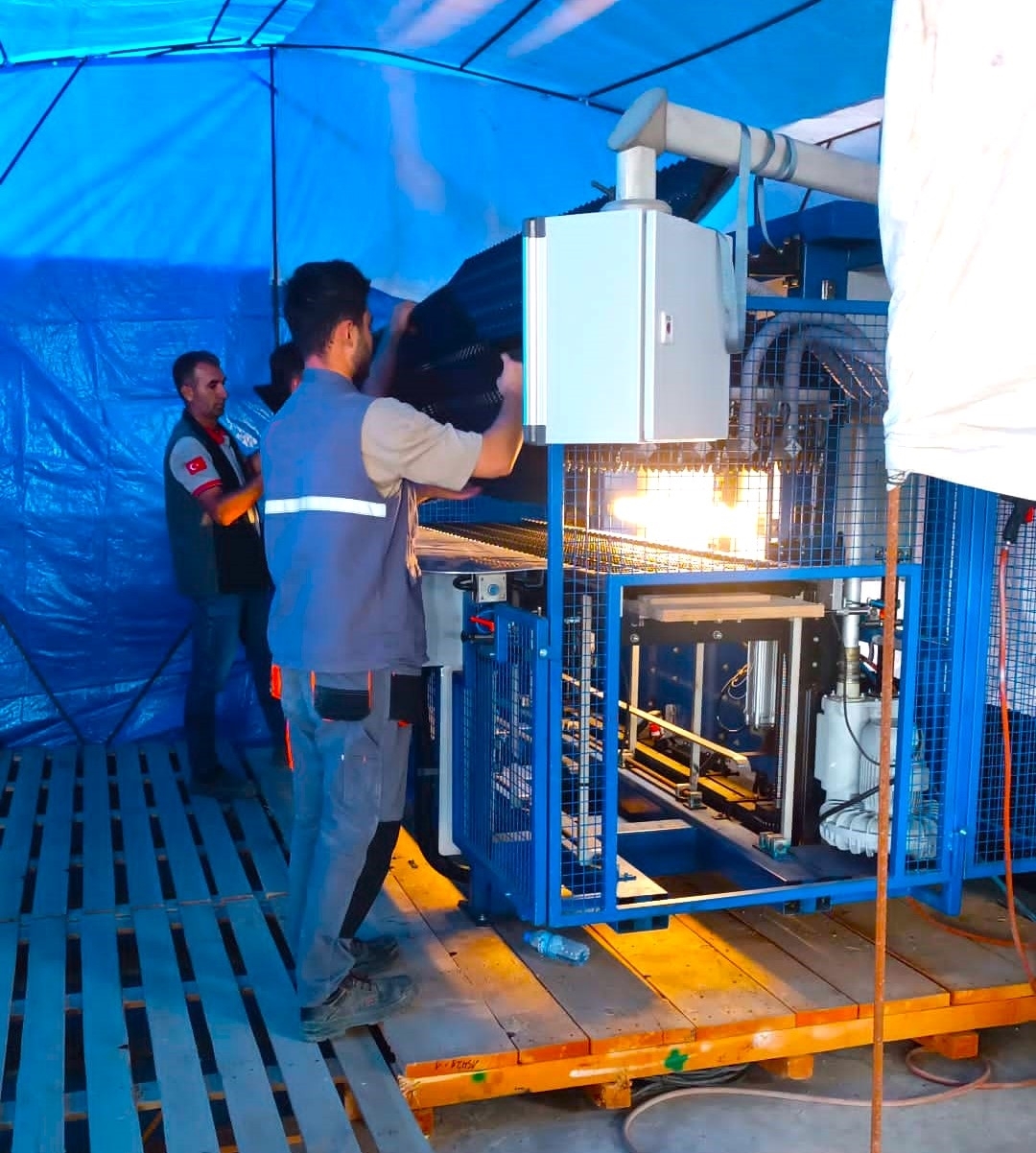

Our specially developed welding machines allow for both permanent-use fill production and on-site production. The optimized fill design offers more than 97% free volume, making these installations effective for both light and highly contaminated water qualities.

Main Features

Flexibility: Adaptable design with variable dimensions and strength classes to adapt to various installation scenarios.

Efficiency: Increased heat and mass transfer thanks to large effective surface areas ensures high operating efficiency.
Mechanical Stability: Exceptional load-bearing capacity with robust joints and wall thicknesses to ensure accessibility.

Durability: Constructed using age-resistant materials for long-term effectiveness.

Fire Safety Compliance: Formulated with effective additives to meet the highest fire protection regulations.

Technical Specifications

Standard Dimensions: 2,400 x 300 x 510 mm (L x W x H). Custom sizes available upon request.
Channel Opening: 20 mm
Effective Surface Area: 125 m²/m³
Channel Structure: Vertical, straight
Materials: Polypropylene (PP), Polyvinyl Chloride (PVC)
Operating Temperatures: PP < 75°C (continuous), max 80°C (short term) measured in distribution pipe
Free Volume: > 97%
Flammability Degree: Complies with ASTM E 84, UL 94 and DIN 4102-B2 standards.
